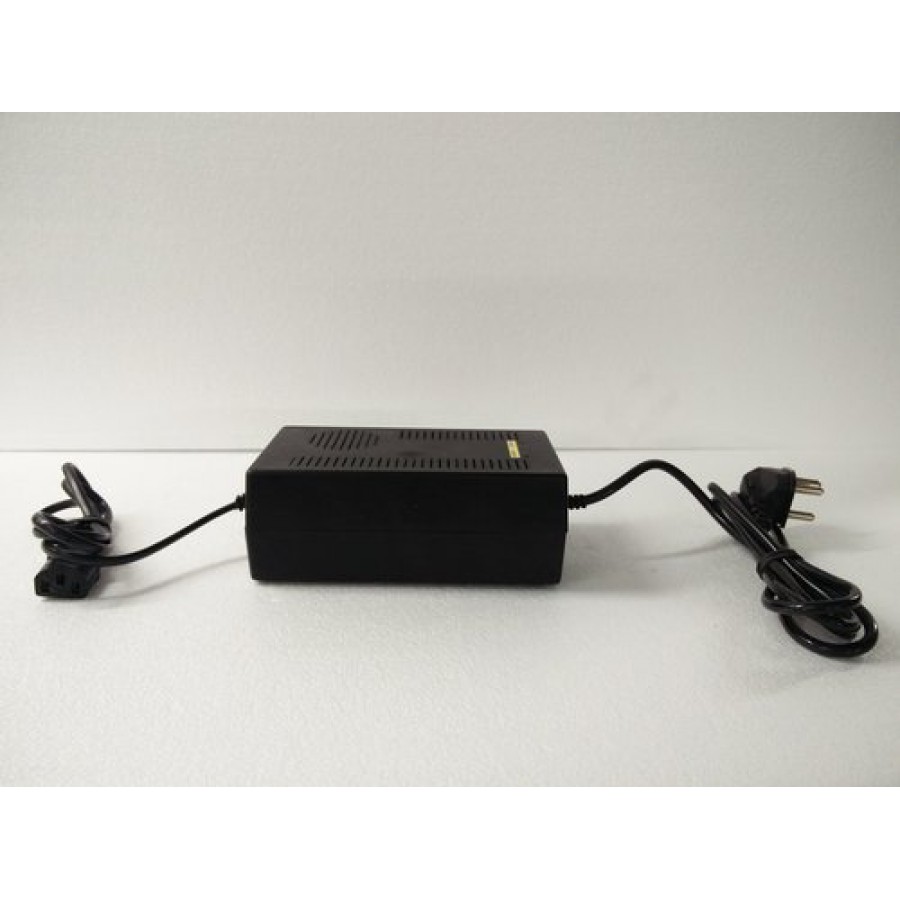

E Bike Charger (Automotive Battery Charger)

By LZEN ELECTRONICS (INDIA)

LZEN ELECTRONICS (INDIA)

India

About Our CompanyPower cuts are common in almost every part of the India, Bangladesh and many other countries of the world. Also, there are several vehicles and technological devices that require power to perform. To provide people access to electricity even in the absence of the main resource, technology has offered us several Power Back Up & Solar Power Products. Our company, Lzen Electronics (India), works to make these products easily available to customers. In the legal records, we have registered ourselves as a manufacturer, trader and exporter, so that without facing any challenges we can perform and serve finest products across the markets. Some of the products that are in most selling list of our offerings are Sine Wave Home UPS Card, Automatic Battery Charger, CFL Lighting UPS, LED Bulbs, Battery Testers and Eco Series Inverters. Eac

Other Details

ESTD. From

1994

Number Of Employees

Annual Turnover

Rs 5 Crores

GST/VAT/Tin No.

07ADAPG3426B1ZB

Technical Specifications

48V, 3.5A

Electrical Characteristics

Input Voltage

160-290V AC

Output Voltage-Boost mode

56V DC

Output Voltage-Float mode

53.6V DC

Charging Current-Boost mode

2.5A

Leakage Current @ 230 V ac

< 2mA

Line regulation

< 1%

Load regulation

< 1%

Ripple content

150mV p-p

Dielectric strength

Between Input & Output

2kV AC

Between Input & Earth

1.5kV AC

Between Output & Earth

1.5kV AC

Protections

In rush current

Limited by NTC Thermistor

Over voltage at Input

Shut down above 300V AC

Under voltage at Input

Cutoff at 140V AC. Cut in at 160V AC

Over voltage at Output

59V

Short circuit at Output

Protected

Overload at Output

Protected

Reverse polarity of Battery

Protected

Over voltage due to external source

Protected

Other Features

Indications

Charging ON, Mains ON

Mechanical

Dimensions W x D x H

16 cm x 9 cm x 6.5 cm

Mounting

Table top mounting

Approx. Weight

700 g

Environmental

Operating Temperature

0- 50 Deg.C

Operating Relative Humidity

0 - 80% Max.

Vibrations

10 - 500Hz 2G-10 min. / 1 Cycle 60 min. along all three axes
