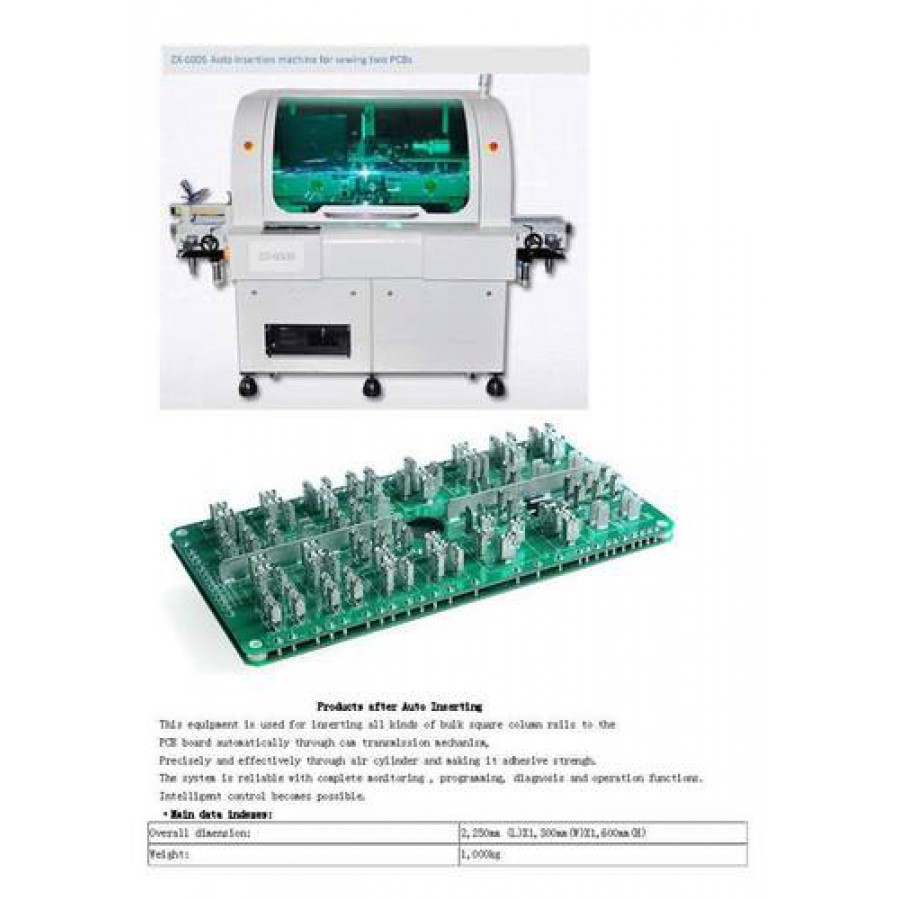

FH-600S Automatic Sewing Machines
FH-600S Automatic Sewing Machines
FEI HONG INDUSTRY (HONG KONG) LIMITED

Established with great market goodwill, we are occupied as manufacturer and exporter of FH-600S Automatic Sewing Machines in Dongguan, Guangdong, China. This equipment is used for inserting all kinds of bulk square column rails to the PCB board automatically through cam transmission mechanism, precisely and effectively through air cylinder and making it adhesive strength. The system is reliable with complete monitoring , programming, diagnosis and operation functions.
Intelligent control becomes possible.
Main data indexes:
Overall dimension: 2,250mm (L)X1,300mm(W)X1,600mm(H)
Weight: 1,000kg
Air: 6+-0.5kg/cm2 (air consumption: 656N/min)
Power: AC 220V, single-phase 60HZ, 2.4KW
Noise: 80dB
Operating environment: 5-40
Humidity:
10-90%RH (it can be used as long as there are no
crystal beads in the air)
Requirements for the surrounding environment: no corrosive gas
Movement dimension of workbench:
X680mm, Y370mm multi-direction
X580mm, Y370mm bilateral
Movement speed of workbench: 22.5m/min
PCB electric circuit board: 500 X 350Max
Flow direction of PCB: L-R,R-L
Inserting direction: 0, 90, 180, 270degrees or multi-angle
Plugging speed: 140-200PCS/min
External communication function: by RS-485 interface
Installation time of electric circuit board: 4s
Component inserted: Bulk Square shape rails
Quantity of inserting heads: 1-3 (based as required)
