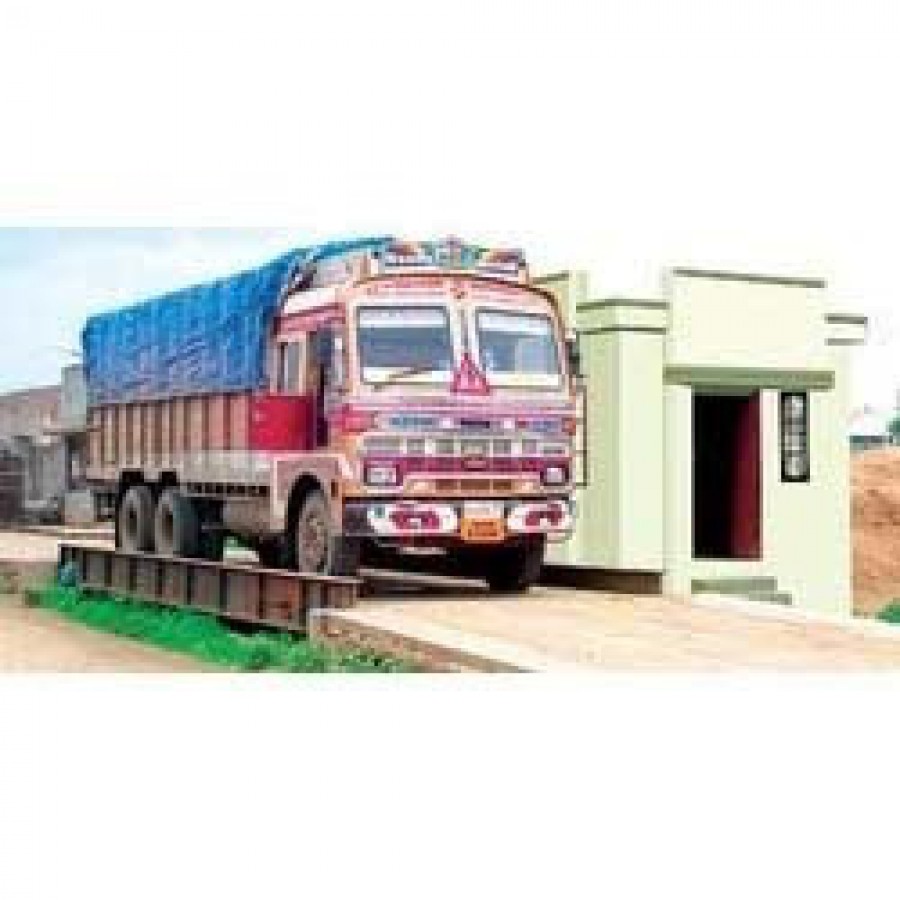

Fully Electronic Weight Bridge System

By NITIRAJ ENGINEERS LTD.

600000 Per Unit

NITIRAJ ENGINEERS LTD.

India

To cater to the growing requirements of people for various products like Ultraviolet Sterilizer, Face Shield, Milk Weighing Scale, Analytical Weighing Balance, LED Display Jewellery Weighing Scale, Piece Counting Platform Scales, etc., our company, Nitiraj Engineers Pvt. Ltd. Was established in 1989. Today, with the help of our quality products we are known as the leading manufacturers and suppliers of the above-mentioned items. Our products are known in the market for their superior quality, dimensional accuracy, and robust design. They are available in the market at cost-effective rates. We manufacture our products according to industry standards and they meet international quality standards. We have been in this industry for more than 30 years, and in these years we have created a strong foothold for ourselves in the market. We have grown with the changing times and technolog

Other Details

ESTD. From

1989

Number Of Employees

287

Annual Turnover

Rs 40 Lakhs

GST/VAT/Tin No.

27AABCN1116E1Z1

Our company is engaged in manufacturing and exporting of Fully Electronic Weight Bridge System to our consumer from Dhule, Maharashtra, India with the following details:
Applications
Truck, Trailer, Container Weighing.
Main Features:
High accuracy upto 5000 to 10000 counts.
Pitless / pit type construction.
Platform size s per customer's choice.
Accessories:
Detachable extra display at 5 meter.
Computer/printer interface (RS - 232 C)
Jumbo display.
Wireless RF Extra Display
USB port for laptop computers.
HD Weigh Bridge Smart Software

Model Capacity Accuracy Platform Size
WB-1010 ton2 kg 4. 8 x 2. 4 m
WB-2020 ton5 kg 6 x 3 m
WB-3030 ton5 kg 7. 5 x 3 m
WB-4040 ton10 kg9 x 3 m
WB-5050 ton10 kg12 x 3 m
WB-6060 ton10 kg15 x 3 m
WB-100100 ton20kg 18 x 3 m

Indicator:
* Utilizing 24 bit - ADC (high internal resolution)
* Micro controller based.
* 6 digit easy to read bright led display.
* Utilizes 6 V. 4AH SMF battery.

Load Cell
* Double ended shear beam type steel alloy heavy duty load cell (4 to 8 nos)
* Junction Box
* Made up of M. S. With powder coated surface
* Suitable upto maximum eight load cells.
* Cable glands provided for easy & proper fitting of cables.

Mechanical Structure
Heavy duty mechanical structure comprising of i beam & heavy deck plate to support 150% of weigh bridge capacity.
Computer / Printer.
To be arranged by customer.
