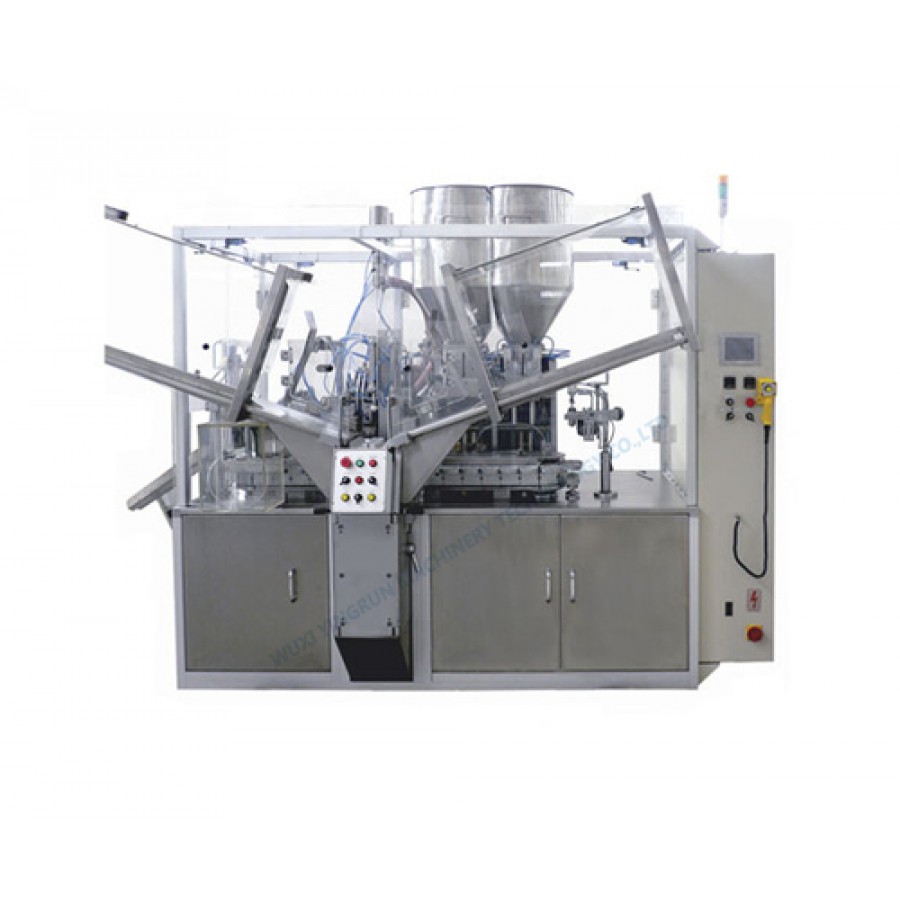

Gz05b Automatic 2-Color Toothpaste Filling And Sealing Machine

By WUXI YINGRUN MACHINERY TECHNOLOGY CO., LTD.

5000000 Per Unit

Categories

Industrial Plants & MachineryWire Drawing & Cabling MachinesVending Machines & DispensersBinding and Pressing MachinesMachines & EquipmentsCranes, Forklift & Lifting MachinesMaterial Handling Machines & SystemsFarming Tools, Equipment & MachinesCleaning Machines & EquipmentsHydraulic & Pneumatic MachinesCutting Machines & EquipmentStrapping & Sealing MachinesPollution Control Devices & MachinesCNC Machines & Lathe MachinePlastic Work & Processing MachinesCasting, Moulding & Forging MachinesBending & Metalwork MachinesPackaging Machines & GoodsStrapping & Sealing MachinesForm Fill & Seal MachinesFilling Machines & PlantsMarking and Stamping MachinesWrapping & Banding MachinesHand & Machine ToolsJewellery Making Tools & MachinesWoodworking Tools & MachinesBuffing, Surface Finishing MachinesCNC Machines & Lathe Machine

Representative

Mr. Tiger Jing

WUXI YINGRUN MACHINERY TECHNOLOGY CO., LTD.

China

Machines are something that play crucial role in enabling manufacturing companies to deliver various products to the highest level of specification and quality on time. Machines are the basis of precision manufacturing and pondering a world without machines is just next to impossible. To bring forth customers various types of machines that enable manufacturers to produce quality products on time, we, Wuxi Yingrun Machinery Technology Co., Ltd. came into existence. We are a Manufacturer and Exporter of Toothpaste Filling And Sealing Machine, Aluminum Cans Machine, Aluminum Cans Printing Machine, etc. These machines are made using superior quality raw materials and sophisticated technology. User-friendliness, high efficiency,

Other Details

ESTD. From

2005

Number Of Employees

120

We are "Wuxi Yingrun Machinery Technology Co., Ltd." instrumental in making, supplying and exporting of GZ05B Automatic 2-color Toothpaste Filling and Sealing Machines in Wuxi, Jiangsu, China. Toothpaste Line GZ05B is a new type of color striped toothpaste filling and sealing machine developed from GZ05 automatic filling and sealing machine. The toothpaste machine has the international patent. It is suitable for filling and sealing composite or plastic tubes with semi liquid products. It adopts inner hot air mechanism for the adhesion and sealing of tubes.

Main technical parameters:
A. Tube diameter range: 13mm-40mm
B. Tube length range: 60mm-200mm
C. Production speed: <120tubes/min
D. Motor power: 3.7KW
E. Dimensions: 3150*1560*2270mm
F. Net weight: 3820 KG
G. Sealing form: hot air
H. Electricity: 380V/50Hz
I. Compressed air pressure: 6 bar
J. Cooling water pressure: 1.5 bar
K. Location accuracy: 1.5mm
L. Filling accuracy: 0.5 g
M. Working form: double pumps, synchronous belt
