Numerically-Controlled Hydraulic Hose Crimping Machine
Numerically-Controlled Hydraulic Hose Crimping Machine
SHANDONG YONGFENG HYDRAULIC MACHINERY CO., LTD
hydraulic hose skiving machines, hose cutting machines,testing bench, steel pipe swaging machines, and other hydraulic equipments.
we also offer customized options to satisfy your crimping operations and one-stop crimping solutions.
SHANDONG YONGFENG HYDRAULIC MACHINERY CO., LTD
Address: No.01-101, Dianxi Industrial Park, Economic Area, Weifang City, Shandong Province, China(Mainland).
Website: www.yong-feng.com

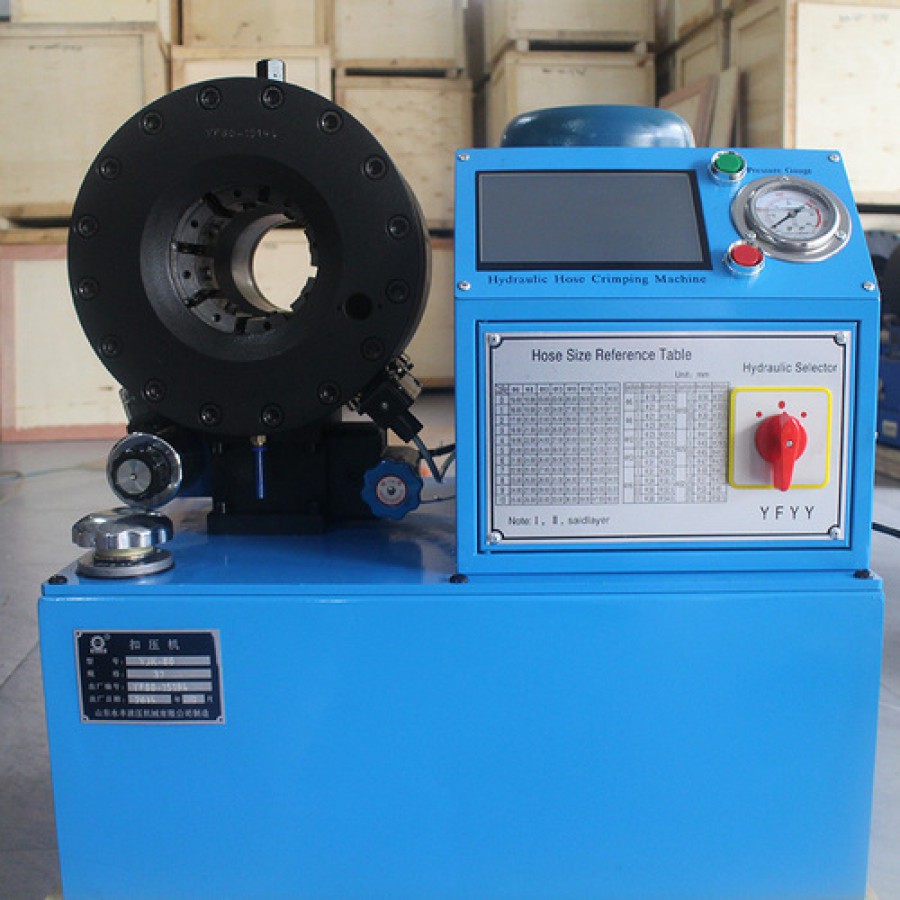

We are engaged in manufacturing, exporting and supplying excellent quality Numerically-Controlled Hydraulic Hose Crimping Machine to our valuable clients. The CNC YJK-80 Crimper with a hose capacity up to1 inch 2 wire hose and 1 inch 4 wire hose offers many of the same features found on larger YJK crimpers. The smaller quick acting head and precise micrometer adjustment make this crimper a good choice for workshops which do not require the hose capacity of the larger crimpers.
Technical Data:-
Crimping Force (Ton) : 600
Max Hose Diameter (2 wire) : 1
Max Hose Diameter (4 wire) : 1
Max Industrial Hose Diameter : 2
Max Opening w/o Dies (mm) : 80
(L*W*H) (mm) : 600*480*600
Weight (kg) : 220
Power Supply (V) : 220/380
Motor Power (kw) : 3/4
Manual/Auto Crimping : Auto
Inch/Metric Settings : Metric Only
Dies Sets : 8+4
