TECHNICAL DATA SHEET
SeriesW Series

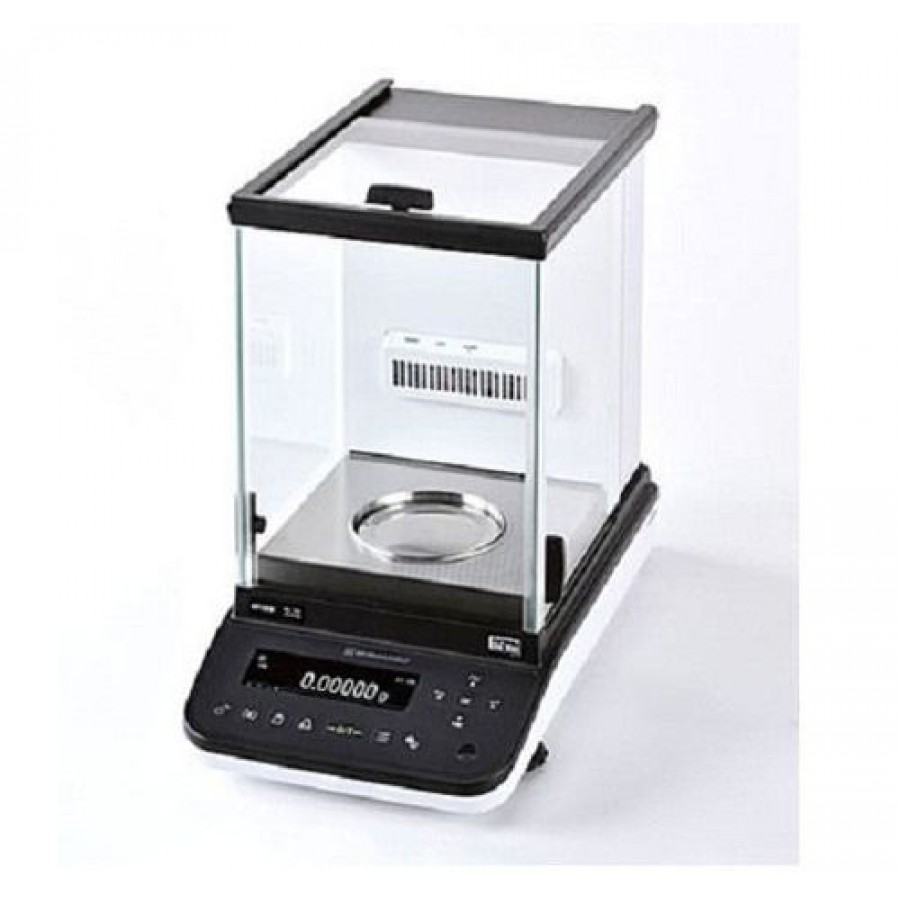

ModelAP225WD
Capacity220 g / 102g
Minimum Display0.01 mg / 0.1 mg
Calibration WeightBuilt-in
External Calibration Weight Range for Span Calibration95 to 220.009 g (200 g)
Repeatability (Standard deviation)0.1 mg / 0.05 mg
Minimum Weight *130 mg
Linearity0.2 mg /0.1 mg
Response Time for race Measurements *2Approx. 2 sec.
Response Time *32 sec. / 8 sec.
USB Host (Type A)Included
USB Device (Type B)Included
Recipe CompoundingIncluded
HPLC Buffer Solution PreparationIncluded
mol Conversion FunctionIncluded
Sample (Concentration) PreparationIncluded
Inspection Support FunctionIncluded
Clock-CALIncluded
IonizerOptional
WeightApprox. 7.0 kg
Operating Temperature/Humidity Range5 to 40C 20 to 85%*4
Sensitivity Stability Against Temperature Range2 ppm/C (10 to 30C)
Pan Size91 mm
Body DimensionsApprox. 212 411 345 mm
power supply unit included
WeightApprox. 7.9kg
DisplayOEL display (dot matrix)
Input/Output TerminalRS-232C (D-sub9P plug) USB host (Type A) USB device (Type B) Ionizer

*1 According to USP Capture 41. This is the tested value by the weight of the balance's capacity of 5%.
*2 The response time value is typical.
*3 Non-condensing.
*4 Non-condensing.

Features
High Speed -Fast measurement significantly improves operational efficiency.
Fast Response with UniBloc AP Technology
Advanced Digital Control for Fast, Reliable Weighing.
Built-in High-Performance Ionizer (Optional)
Stress Free
Regulation for the Pharmaceutical Industry.
High-Security User Management
Printing Data in Accordance with Various Regulations
Minimum Measurement Value (Warning Function)
Recipe Function (Achieve Your Preferred Compounding Process)(AP-W Series only)
Solutions to Improve Operational Efficiency and Ensure Data Reliability Lab Solutions Balance Analytical Network Data System Compliant with ER/ES Regulations
Compliant with the Latest Data Integrity Guidance (U.S. FDA 21 CFR Part 11)
Integrated Report Creation Function Combines Analysis Results from HPLC and Weighing Results from Balance
Save Your Operation with USB Offers Greater Expandability (USB host: AP-W Series only)
USB flash drive
Weighing display can be recorded into USB memory in BMP format. User name,
date/time, and setting can be shown with display information.

Connecting a common external numeric keypad makes it easier to enter numeric values.

Barcode reader can be connected. Simply reading a barcode makes it possible to input user ID/Password.

Easy-to-Read Organic EL Display (All models)

AP series supports periodic inspections. The function allows inspection of repeatability, corner load error, and linearity by simply following instructions displayed on the screen.
