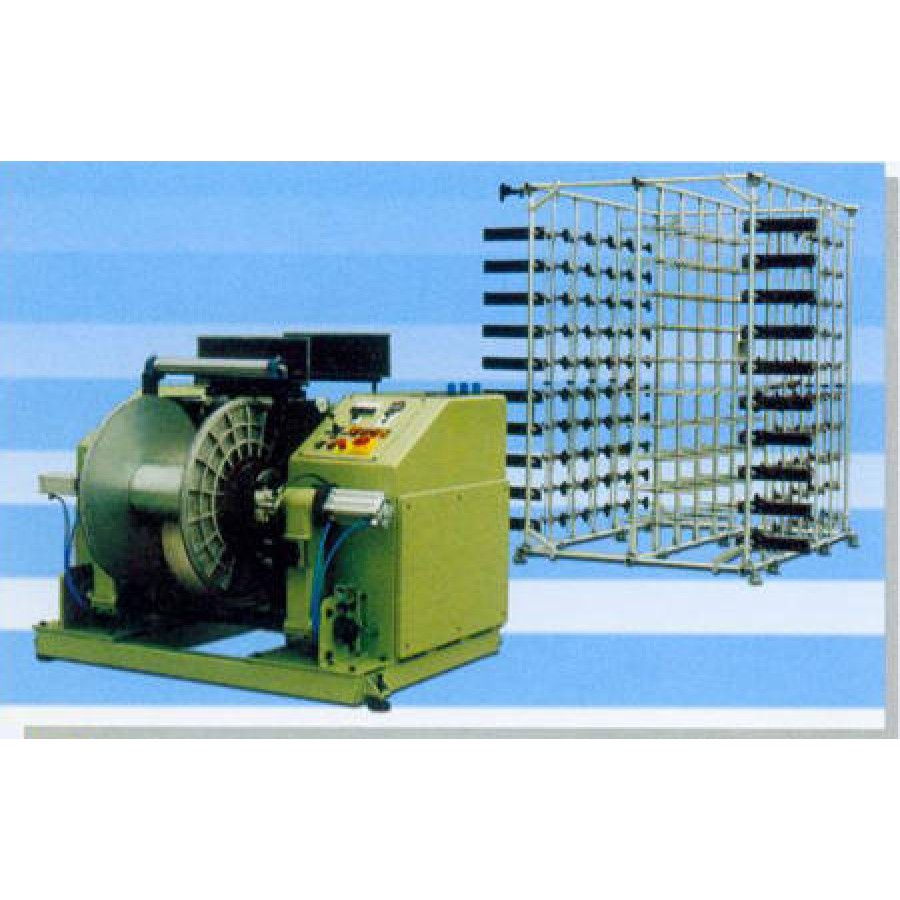

We are manufacturing and supplying Wrap Knitting Machine from Jiaxing, Zhejiang, China to our esteemed clients. This is the machine which researched and developed by local China engineers, The machine combines computer, Person-machine interface and servo control. The major broken yarn auto-brake device is imported from America.
Main Technology Parameter:
1. Warp Beam Size: A, 21"*21", B, 21"*30";
2. Final Draft: 25%~100%;
3. Servo Motor Power: Creel Power:22kw, Craper Power:22Kw, Draft Roller Motor:5.5Kw;
4. Braking Time: Less than 0.8 seconds;
5. Warp Liner Speed:50~400 m/min;
6. Creel Capacity: 600 ends(720 for choice)
7. Warp machine covering space: 4000*17000mm. Main Features: 1. Adopt the Positive let-off motion, The frequency transducer drives roller to wind the liners stably.
2. Adopt the advance Servo and Tracing system to draft and take up the yarns..
3. Adopt the constant linear velocity winding system to ensure drafting accurately.
4. The creel doffing tighten and loosen is controlled by the gas tensions.
5. The creel can line as "-" shape and "V"shape,and creel has expansion reed and anti-static parts.
6. Optimized design, lower noise, easy operation, and convince quality.
